OPUS · Sleeps 5
EXPEDITION MAX Family Off-Road Hybrid Caravan with Bunks
Built for families who travel further.
A 17ft off-road hybrid built around growing families. Internal ensuite, queen up front, optional bunk layouts down back, and a 600 Ah lithium / 800 W solar system that keeps you off-grid longer, in places without phone signal. Pop Top or Hardside, same chassis, same power, same off-road bones.
Recognised · Earned · Owner-tested

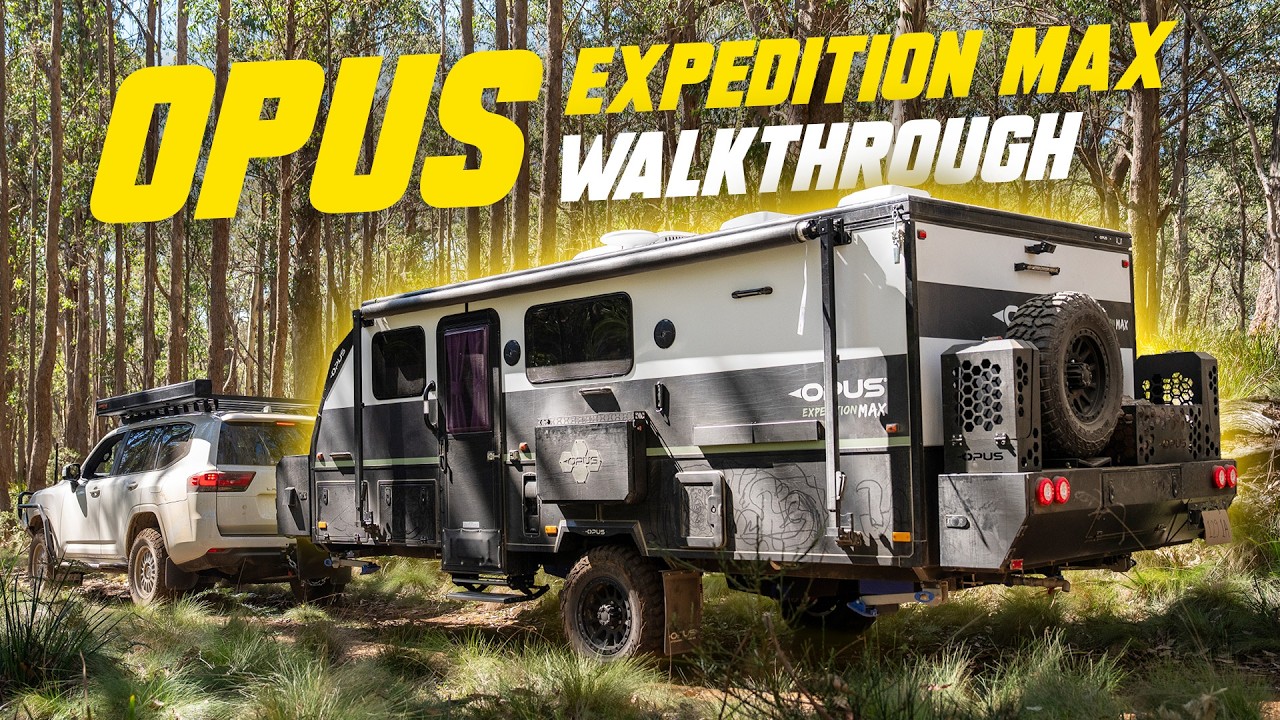

Walkaround
Take a walk around the Expedition Max.
Tyler Thompson walks the Expedition Max end to end, every layout, the kitchen, the bed and the chassis underneath. The full tour before you ever step into a showroom.
On test
What the reviewers say.
Don't just take our word for it. See it put through its paces by Australia's RV reviewers.
Inside the EXPEDITION MAX
Built around the way you actually camp.

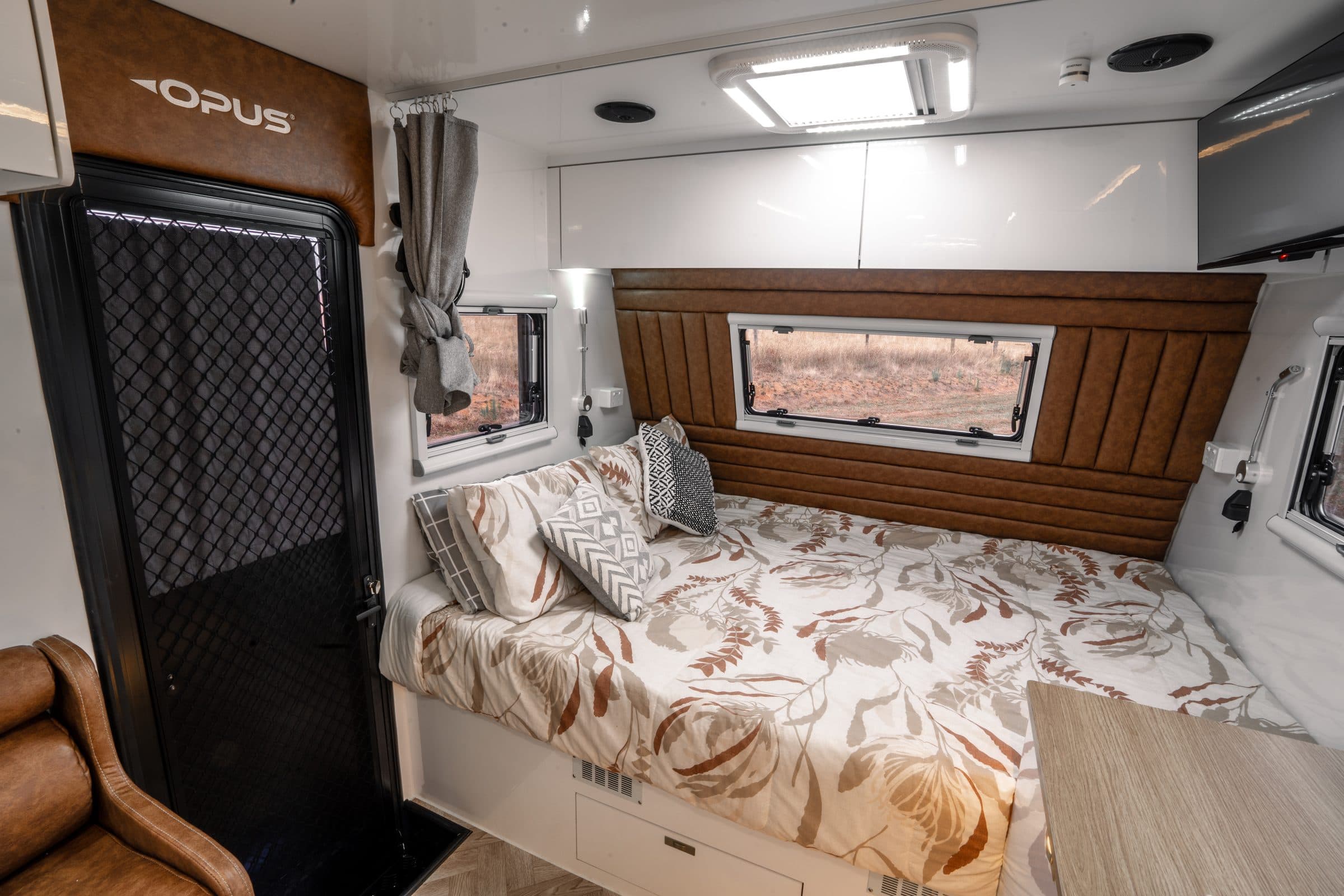

Premium where you sleep
Innerspring queen with a leatherette headboard, panoramic windows, the kind of fit-out the brochure photos can't quite do justice. Soft to fall into after a long day towing.

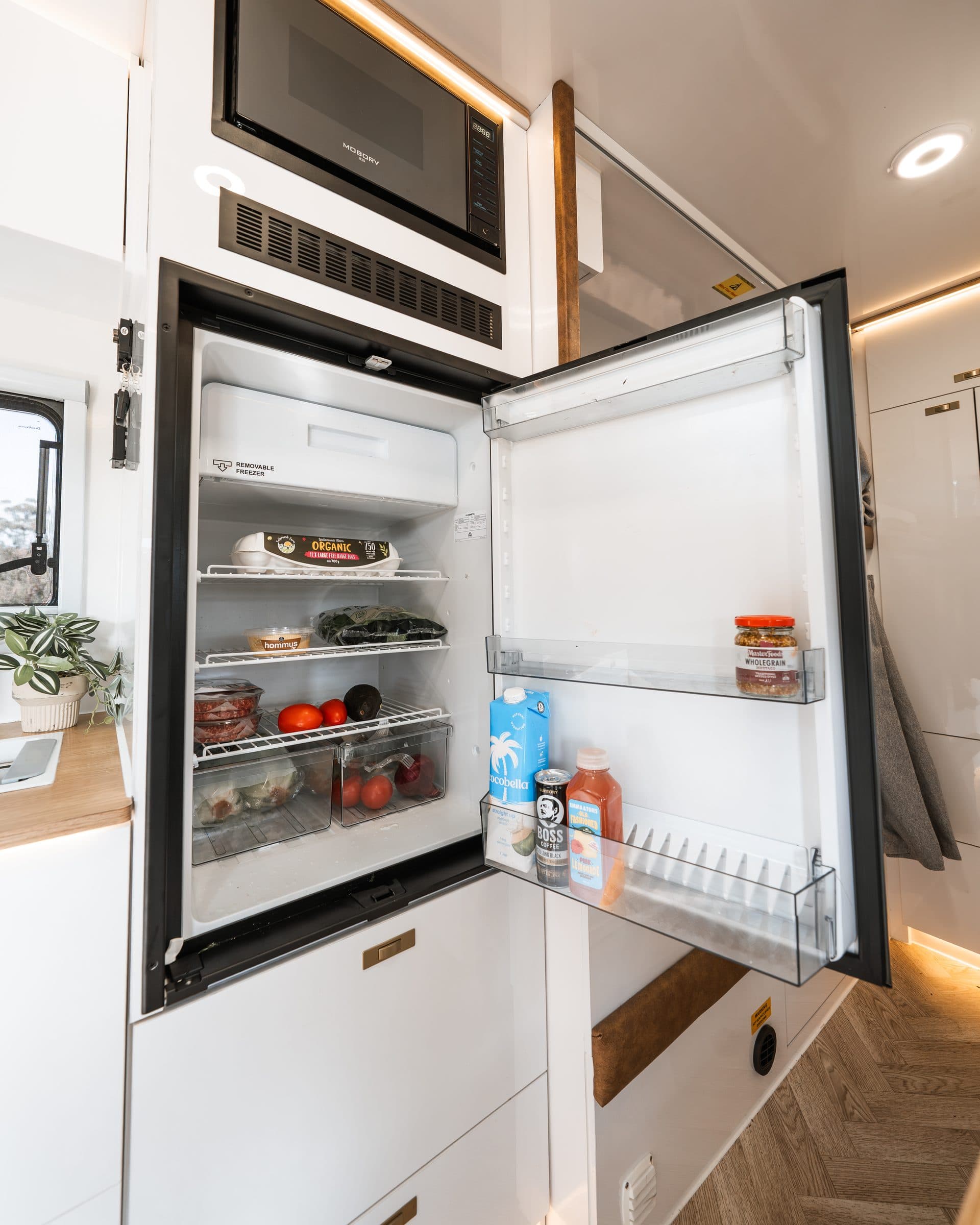

Bunks, L lounge, kitchen
Inside the cabin, 2- or 3-bunk layout down back, an L lounge to gather round, full galley with sink, microwave and 130 L fridge. Parents and kids get their own ends.

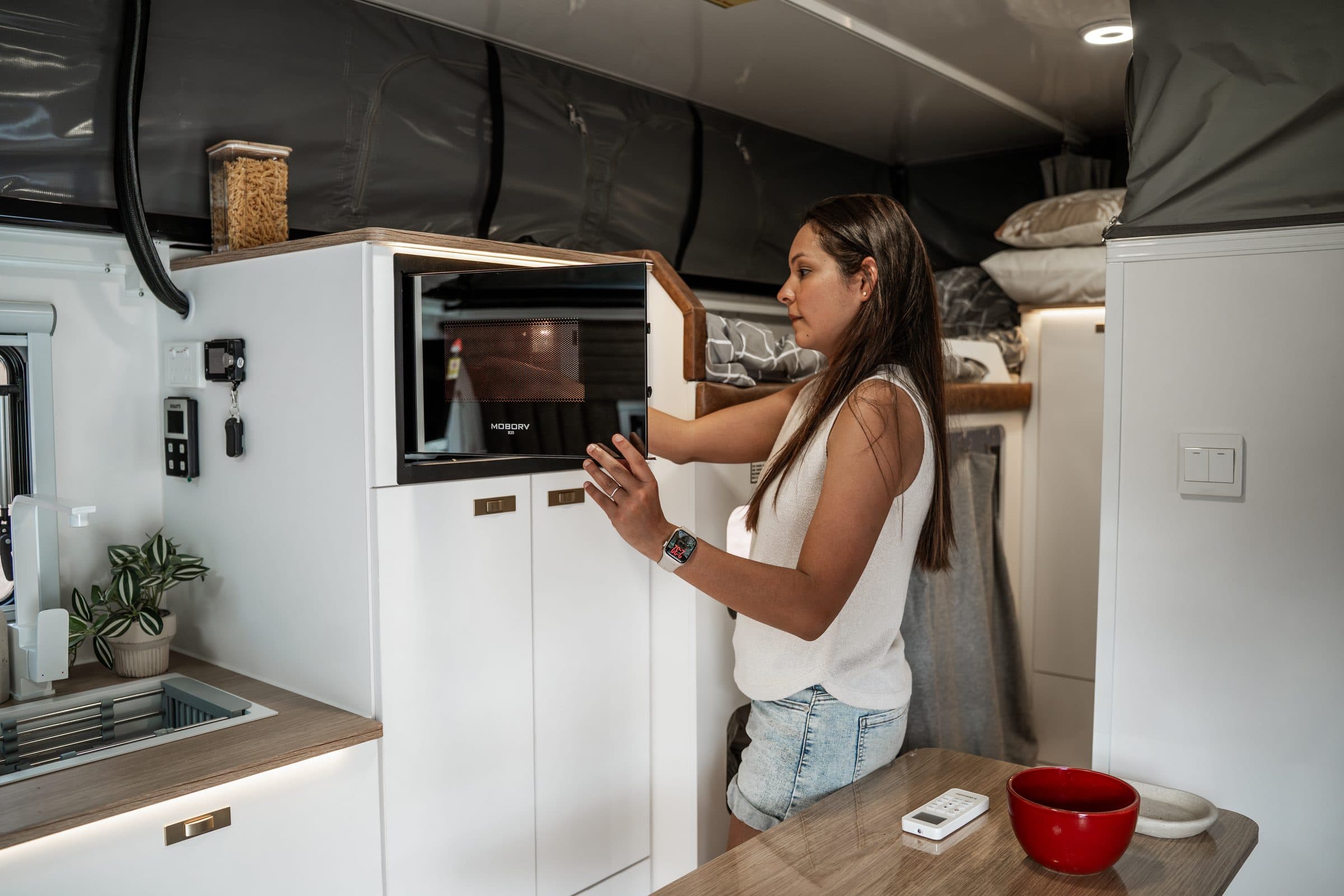

Off-grid is the standard
Plug the kettle in. Turn the microwave on. Run the aircon and the laptop and the TV. 600 Ah of Renogy lithium and 800 W of roof solar, with a 3,000 W inverter wired to every powerpoint.

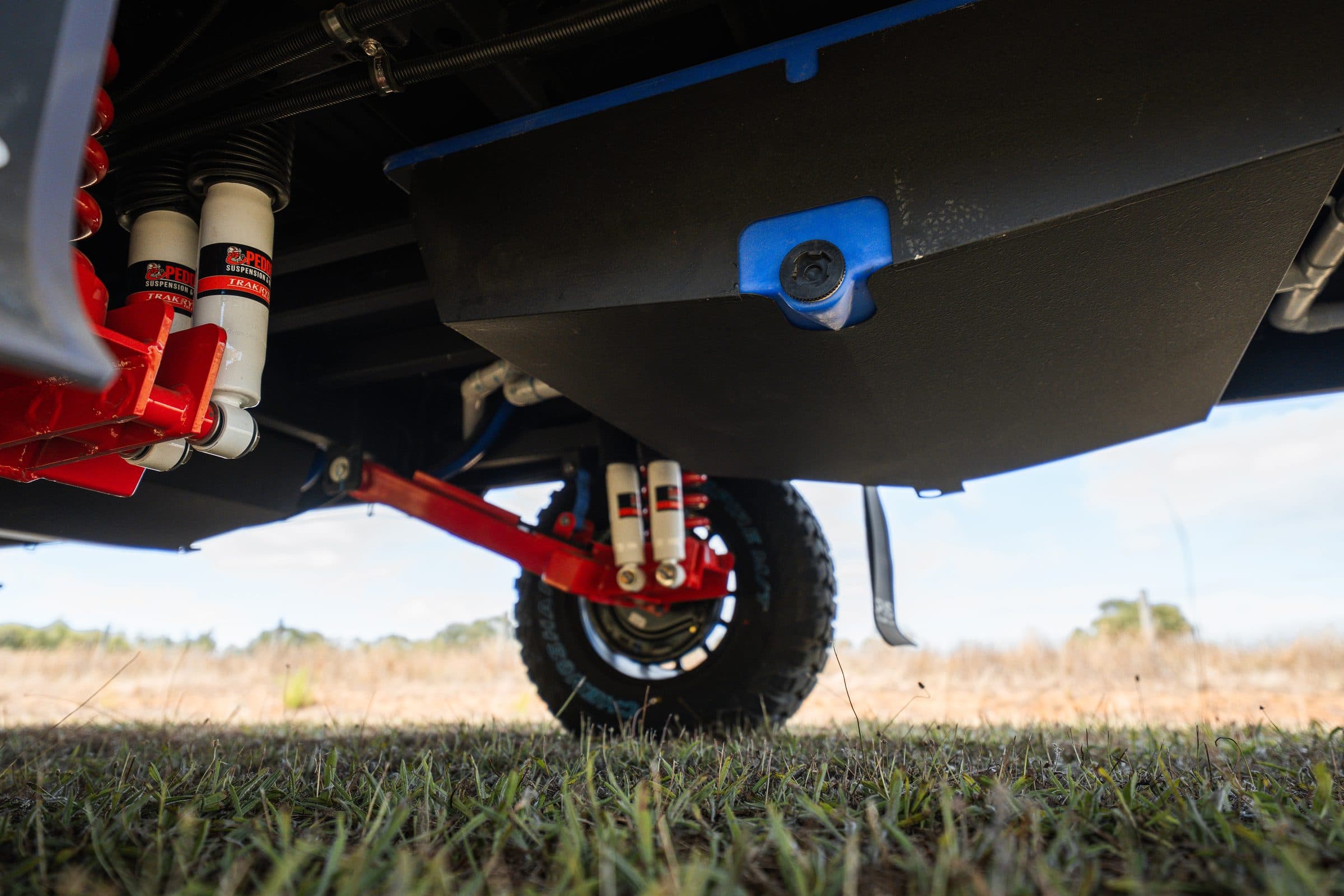

Built for the corrugations
Hot-dipped galvanised gooseneck chassis, OPUS vertical-mount Pedders shock suspension, Ridge Runner reinforcement and a DO35 articulating hitch. Engineered for the roads that test full caravans.
Two ways to spec it
Pick your trim.
Same off-road chassis, same expedition bones. Two finishes for two kinds of trip. The everyday off-roader, or fully loaded.
- Pop-top roof, 2.67 m travel height
- 2,450 kg tare / 260 kg ball weight
- Same chassis, power and ensuite as Hardside
- Best for: families who tow more often, store at home
+$2,490
- 3.20 m travel height (Pop Top is 2.67 m)
- 2,500 kg tare / 265 kg ball weight
- Best for: longer trips, four-season touring, fast setup
The numbers
EXPEDITION MAX by the figures.
Specifications are indicative and may vary by configuration. Confirm final numbers with your OPUS showroom before purchase.

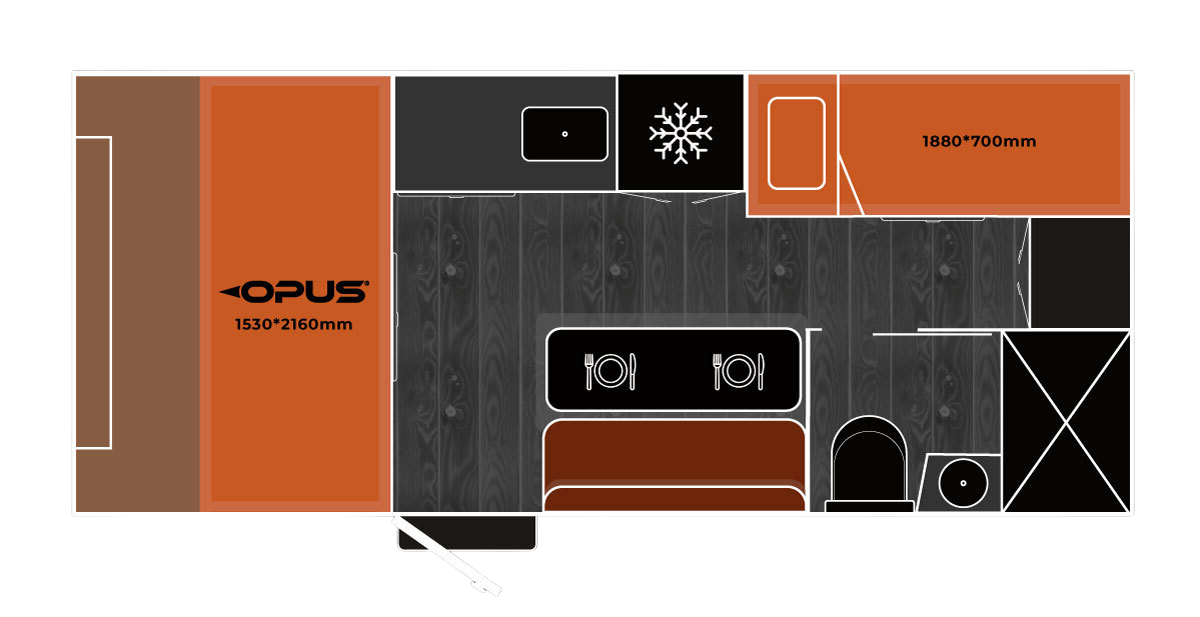

Floor plan
How the MAX lives.
Plan view of the standard layout. Bedding, galley, ensuite and lounge in their daily configuration, all the dimensions you need to picture the space before you walk through one.
Floor plan shown is the standard layout. Bunk and bedding configurations may vary by trim, confirm at order with your OPUS showroom.
What's in the box
Standard kit + the extras worth ticking.
Standard inclusions
20 items- 600 Ah Renogy lithium battery system
- 800 W roof-mounted solar (4 × 200 W)
- 3,000 W Renogy inverter wired to all powerpoints
- Renogy 50 A AC-DC + 50 A DC-DC chargers
- Renogy One Core power management system
- Dometic FreshJet roof-mounted reverse-cycle air conditioning
- Dometic 130 L fridge / freezer
- Dometic slide-out external 2-burner kitchen
- Fogatti instant gas hot water
- Internal ensuite, separate toilet and shower
- Innerspring queen mattress
- 24-inch smart TV with antenna
- Fusion Bluetooth sound system
- Hot-dipped galvanised gooseneck chassis
- OPUS vertical-mount Pedders shock suspension
- Cruisemaster DO35 articulating hitch
- 240 L fresh + 70 L grey water tanks
- Roll-out awning
- 2 × 9 kg gas bottle holders
- Rear toolbox with spare wheel carrier, jerry can holders, firewood box
Optional extras
13 items- Air Bag Man Self-Levelling Air Suspension+ $6,999
- Dometic 200L Fridge Upgrade+ $3,089
- Diesel Heater (AU Focus)+ $1,500
- Extra Renogy 300Ah Lithium Battery (max 1, takes total to 900Ah)+ $1,450
- 50L Evakool Dual-Zone Fridge (external slide)+ $1,449
- Dometic DRS System+ $1,399
- Mobo Washing Machine+ $1,200
- 1000 W Solar Upgrade (adds a 5th 200 W panel)+ $846
- Elec Brakes Electric Brake Controller (skip if your car has one)+ $830
- ARK XO750 Jockey Wheel+ $449
- Complete Security Kit (wheel clamp + hitch lock)+ $310
- Portable Internal Induction Cooktop+ $199
- Extra Ranger Fan (one already included per bed)+ $150
Add to order. Make it your own.
Real Adventure Awaits
Ready to make the EXPEDITION MAX yours?
Spec it your way and get a tow-away price for your postcode, or come see it in person at your nearest OPUS showroom.
Out there
In its element.
Recognised · Awarded · Earned the hard way
Common questions
Everything you want to know.
Same chassis, same power, same ensuite, same footprint. Pop Top sits at 2.67 m travel height for lower garages and bridges, weighs 2,450 kg tare. Hardside sits at 3.20 m, weighs 2,500 kg tare, sets up faster (no roof to raise) and adds insulation for four-season touring. The Hardside runs $2,490 over the Pop Top.
Up to 5 across the queen up front and the optional 2- or 3-bunk layout. Most families spec the 2-bunk for two parents and two kids; the 3-bunk works for three kids or extras coming along.
ATM is 3,000 kg, ball weight 260–265 kg. A capable family 4WD, 200 Series, Patrol, Y62, Prado, Pajero Sport, Everest, handles it within rated capacities. Confirm tow rating against your specific model and any aftermarket suspension.
600 Ah lithium with 800 W of roof solar handles a fortnight or more for an active family, fridge, lights, water pump, TV, device charging. The 3,000 W inverter runs the aircon, microwave and 240 V appliances directly. 240 L of fresh water gets four people through about a week of normal use before refill.
Hot-dipped galvanised gooseneck chassis, independent coil-spring suspension with vertical-mount Pedders shocks, Ridge Runner reinforcement on the corners, mud-terrain tyres and the DO35 articulating hitch. Built and specced for the same tracks the camper-trailer range handles, with caravan-grade comfort inside.
Tow-away pricing covers everything except the optional accessories you tick at order. Bunk layouts and your colour choice are at-order options. Build & Price your Expedition Max in the configurator to see your full price.
Build & Price
Most questions get answered out here. Drop us a note if yours isn't covered above.
